Pelican 2690 Intrinsically Safe LED Headlamps

$56.45 ____Incl. GST

Pelican 2690 Intrinsically Safe LED Headlamps – built for industry and adventurers – Lifetime guarantee – 11 hour burn time – all weather use – pivot head.

Intrinsically Safe

Waterproof to 1 metre for 30 minutes

Lifetime Warranty

Light Output – 74 Lumens, Beam Distance – 92 Metres


We have 7 headlamps with IECEx intrinsically safe approvals. This link will take you there. These include both waterproof and weatherproof types.



The Pelican 2690 Intrinsically Safe LED Headlamp has both UL and IECEx Safety Approvals and is waterproof. The light output is 74 lumens providing a beam distance of 92 metres and with a maximum run time of 11 hours.

SMOOTH BEAM   – A textured reflector is used so that any circular variations are removed and you are provided with a smooth, evenly distributed.

SWITCH   –    Easy activation, even with gloved hands, is provided by a one hand operating On/Off rotating bezel switch.

HEAD PIVOTS   –  Pivoting the head directs the beam up and down.

LIGHTWEIGHT   –   The 2690 is comfortable and well balanced and weighs only 116 grams, including batteries.

STRAPS  – The 2690 is supplied with an adjustable cloth head strap and a rubber hard hat strap.

HEADSTRAP RETAINERS  – Some hardhats are too slippery or have grease or oil on them and the straps can slide off. Pelican has overcome this with adhesive headstrap retainers. Sets (4) of adhesive headstrap retainers are available to stop the headstrap sliding off construction helmets. this link will take you to the product – 0783 Strap Retainer Set (4)

WATERPROOF  –  The 2690 intrinsically safe headlamp has an Ingress Protection Rating of IPX7. This allows it to remain submerged to one metre for 30 minutes without any harmful effect.

WARRANTY –   Pelican Products, Inc. guarantees its flashlights and headlamps for a lifetime against breakage or defects in workmanship. The lamp or batteries are not covered by this warranty.

INTRINSICALLY SAFE   –   Links to Safety Certificates  –  IECEx ia   and   Class I, II and III, Division 1

This is a table of the results of standardised measurement tests of the essential parameters of this particular product. These are required to make an informed choice and allow equal comparisons with similar products. The parameters include the Light Output in Lumens; the Runtime; the Beam Distance; the Peak Beam Intensity and Water Resistance. This particular table provides the details applicable to the Pelican 2690 intrinsically safe LED Headlamp.”

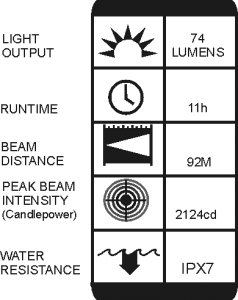

ANSI FL1 Standard Measurement Results for the Pelican 2690 intrinsically safe LED Headlamp

Battery                                                         3 x AAA Alkaline

Weight                                                          116 Gram

Lamp type and Focus                            Fixed focus 10,000 hour LED

Switching                                                    One handed rotary

Material                                                      ABS Body and shroud – Polycarbonate Lens – EPDM O-Ring

Limited Lifetime Warranty              Refer to links below

Safety Ratings –  IECEx and UL           Refer to links below

Instruction Sheet

IECEx Certificate of Conformity

UL Certificate of Compliance

Full Warranty Details

Pelican’s Explanation of ANSI/NEMA FL 1s Standard

Limited Lifetime Warranty – Your Guarantee of Excellence

Pelican Products, Inc. guarantees its flashlights and headlamps for a lifetime against breakage or defects in workmanship. This guarantee does not cover the lamp or batteries.

Link to – Full Warranty Details






Additional information

Weight 0.1 kg
